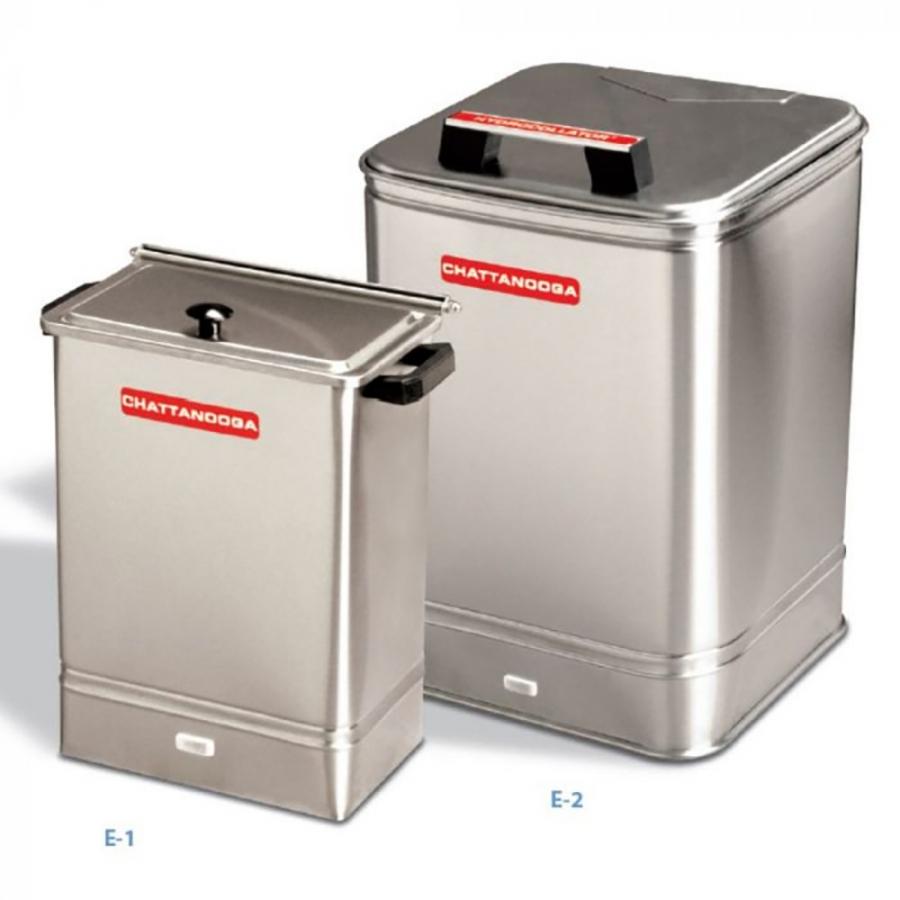

Chattanooga Hydrocollator E-1 Bench-Top Heating Unit

The Chattanooga Hydrocollator E-1 is a stainless-steel bench-top moist-heat unit for heating Hydrocollator HotPacs. Cross-referenced listings identify four Standard HotPacs as the standard supplied configuration.

Listed external dimensions are approximately 33 x 20 x 41 cm, with a unit weight of approximately 7 kg. Listed electrical requirements are 110–120 V, 50/60 Hz, with approximately 1000 W power consumption.

The listed operating temperature is 71–74°C, with a thermal cut-out at 82–85°C. Heat-up to 70°C takes approximately two hours, and cool-down from 70°C takes approximately one hour.
