Interferential Unit — Two‑Channel Electrotherapy Controller

The Nu-Tek two-channel electrotherapy unit provides interferential and other stimulation currents for electrotherapy applications. It has independently controllable channels, simultaneous two-channel monitoring and touchscreen operation.

Features

• Current modes: 4-pole IF, 2-pole IF (Premode), NMS, Russian, Biphasic (TENS), Hi-Voltage (HV), Microcurrent (MCR), and DC modes including Galvanic, Faradic and Diadynamic.
• Diadynamic variants: DF, MF, CP, CP-ISO, LP and RS.
• 42 preset programmes and 80 custom programmes.

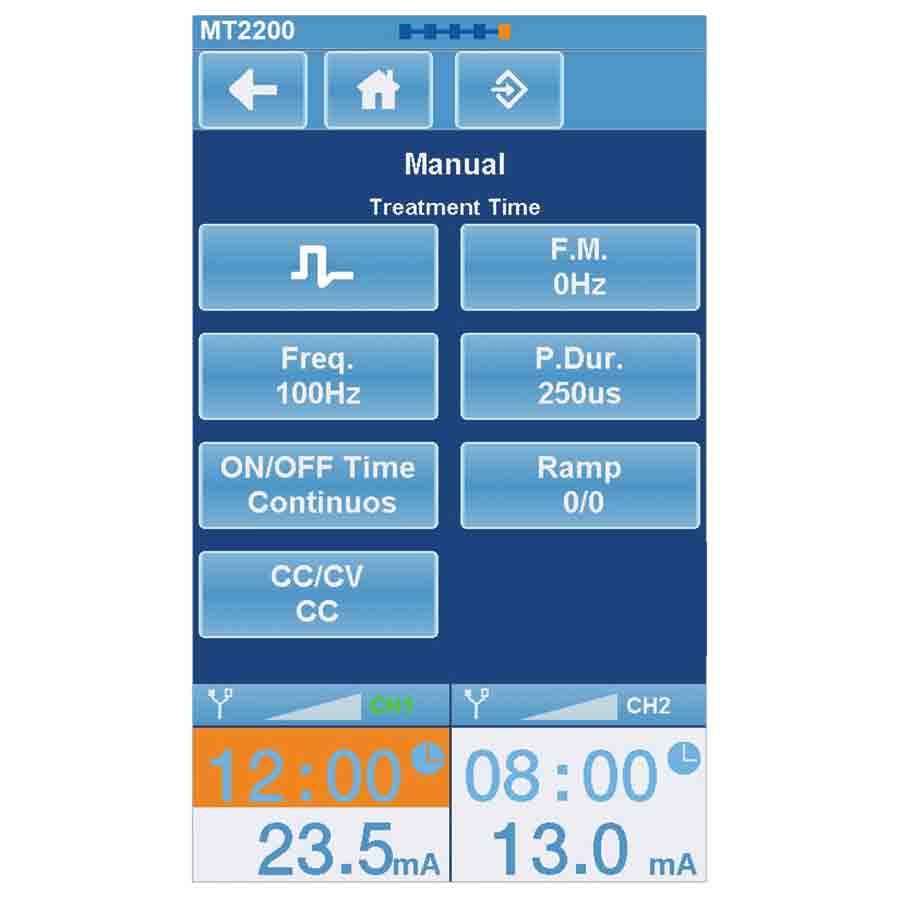

• Touchscreen interface.
• Two independently controllable channels with simultaneous monitoring.

Specifications

• Power supply: AC 100–240 V, 50/60 Hz.
• IF carrier frequency: 2–10 kHz.
• IF frequency: 1–200 Hz.
• Biphasic/NMS frequency: 1–250 Hz.
• HV frequency: 1–120 Hz.
• MCR frequency: 0.1–1000 Hz.
• Listed peak output values: IF/Russian 100 mA; Biphasic/NMS 200 mA; HV 500 V; MCR 1000 µA; DC 80 mA.
• Dimensions: 285 mm (L) × 197 mm (W) × 153 mm (H).
• Weight: 1.8 kg.

Included accessories

• Patient switch, power cable and user manual.
• Rubber electrodes: 60 × 90 mm (2) and 70 × 110 mm (2).
• Envelope sponges: 70 × 100 mm (2) and 80 × 120 mm (2).
• Self-adhesive electrodes: 50 × 50 mm (4) and 50 × 100 mm (4).
• Straps: 75 × 1200 mm and 75 × 600 mm.
• Stimulation leads: 2.
